High Voltage Micro Tail Servo w/Soft Start, 0.095sec / 111.1oz @ 7.4v

High Voltage Micro Tail Servo w/Soft Start, 0.095sec / 111.1oz @ 7.4v

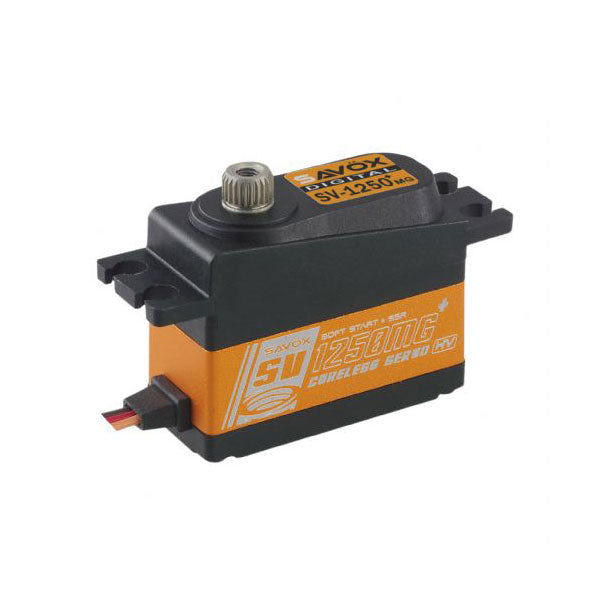

The SV-1250MG mini-sized, metal-geared, digital servo is extremely powerful for it's size and capbable of operating on higher voltages than most mini/micro servos compared to other brands.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

• Steel gear train provide durability against heavy use.
• Capable of HV operation.
• Aluminum middle case allows for cooler operating temperatures.
• Ideal where torque is needed in a small mounting space.
• "Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Specifications:

• Torque @ 6v - 4.6kg/63.9oz-in
• Torque @ 7.4v - 8.0kg/111.1oz-in
• Speed @ 6v - 0.11 sec/60 deg
• Speed @ 7.4v - 0.095 sec/60 deg

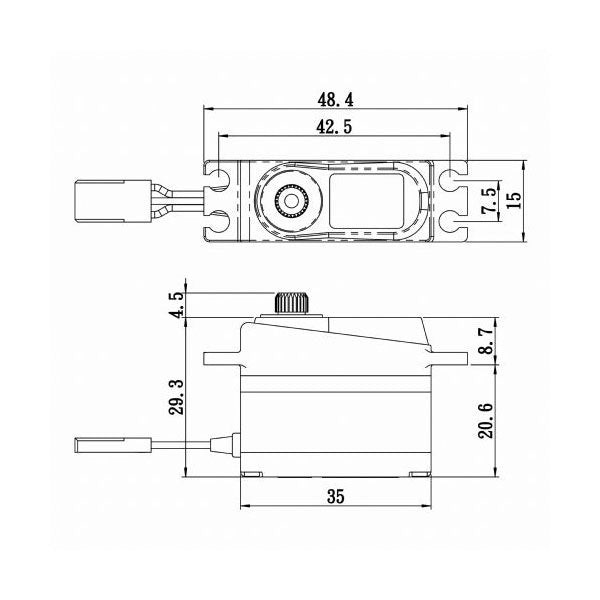

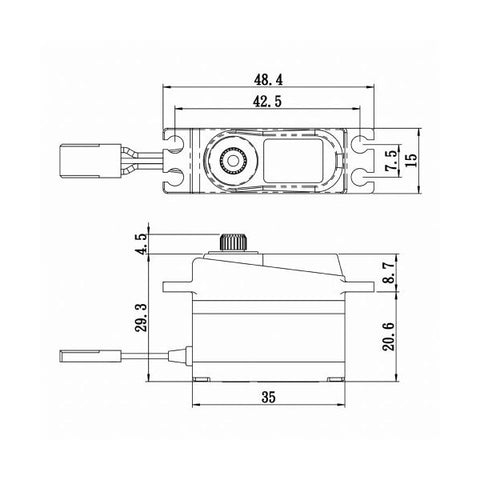

• Dimensions L x W x H (mm): 35.0 x 15.0 x 29.2
• Weight: 29.6g
