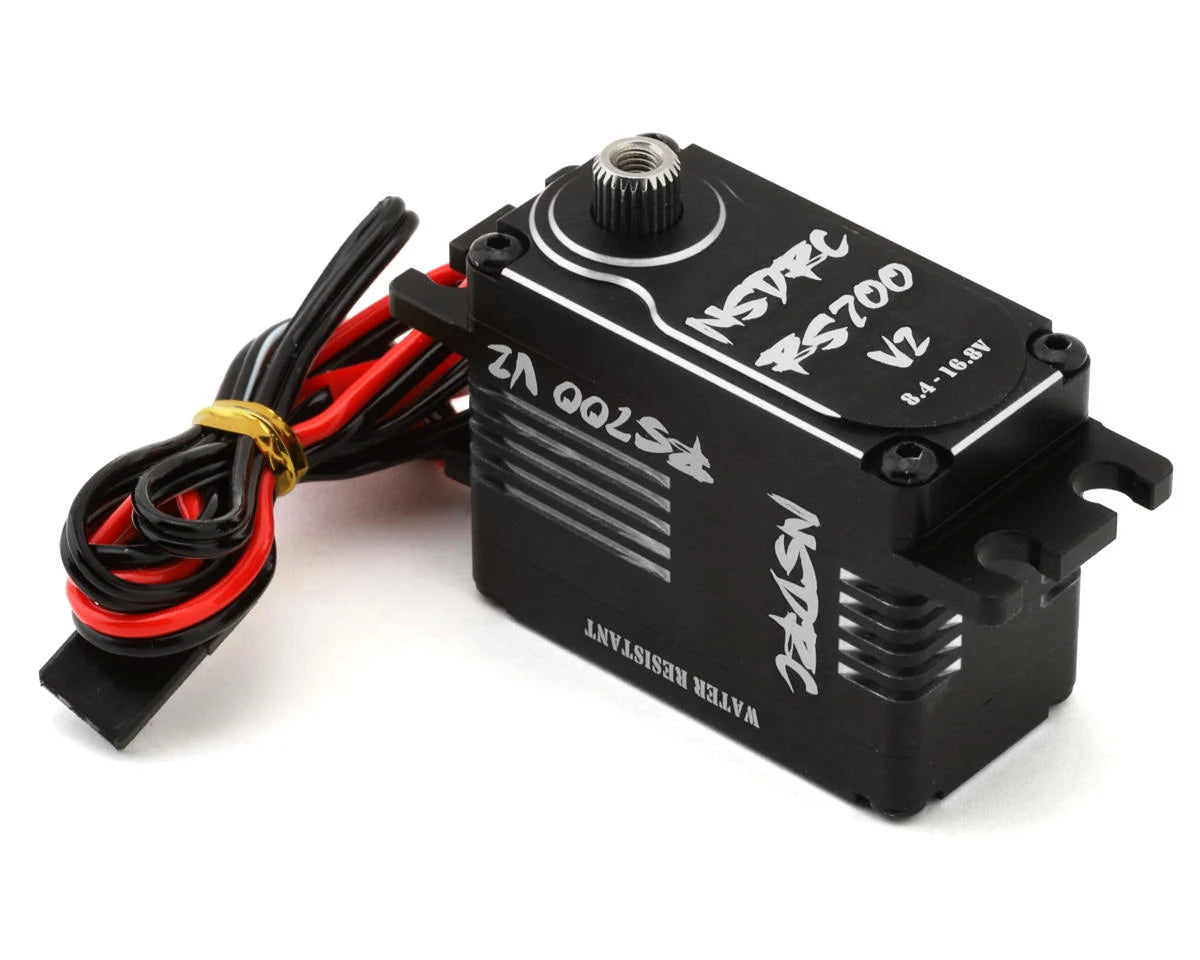

No Superior Designs RC RS700 V2 High Torque Low Profile Servo (High Voltage) (Black)

No Superior Designs RC RS700 V2 Servo and Horn. RS700 V2 is here and better than ever! Fully redesigned to fit larger hardened 416 stainless steel gears, a custom 4-pole brushless motor and an updated PCB to control it all! The RS700 V2 is the highest performing low profile servo on the market. Not only is the RS700 more powerful, more power efficient, and has a more durable gear train, but it is also more affordable than the competition! The RS700 V2 is built with the highest quality parts, designed for the performance demands of competition level

One of the most notable features of the RS700 servo is the industry leading 5-gear gear train design! With the reduction of the 5 gears, durability and precision have been dramatically increased over the standard 4-gear design! The compact, low profile design allows you to shed some weight and provide more space without sacrificing performance. If you're looking for that hire end with an extra performance edge in your build, the RS700 V2 is all you need!

• Not recommended for rock bouncers or bashers
• The power connection plug, or power switch on your ESC, must be disconnected and turned off when not in use to prevent damage to the servo and/or battery! Not recommended to power using balance plug

Features:

• Black anodized all CNC-machined aluminum Case
• Water Resistant
• Hardened Stainless Steel Gears
• Direct Power Superior Efficiency
• 4-Pole Custom Brushless Motor
• Industry Leading 5-Gear Design
• Magnetic Angle Sensor
• High voltage (HV) capable

Specifications:

• Type: Standard Low-Profile
• Motor Type: 4-Pole Brushless sensored
• Operating Voltage: 8.4V - 16.8V
• Gears: Hardened Stainless Steel
• Spline: 25T
• Dimension (LxWxH): 40x30x20mm
• Weight: 70g
• Case: CNC-Machined Aluminum
• Torque:
• 8.4V: 634oz-in / 46kg-cm
• 12.6V: 912oz-in / 66kg-cm
• 16.8V: 1115oz-in / 80kg-cm
• Speed:
• 8.4V: 0.15 sec/60°
• 12.6V: 0.11 sec/60°
• 16.8V: 0.09 sec/60°

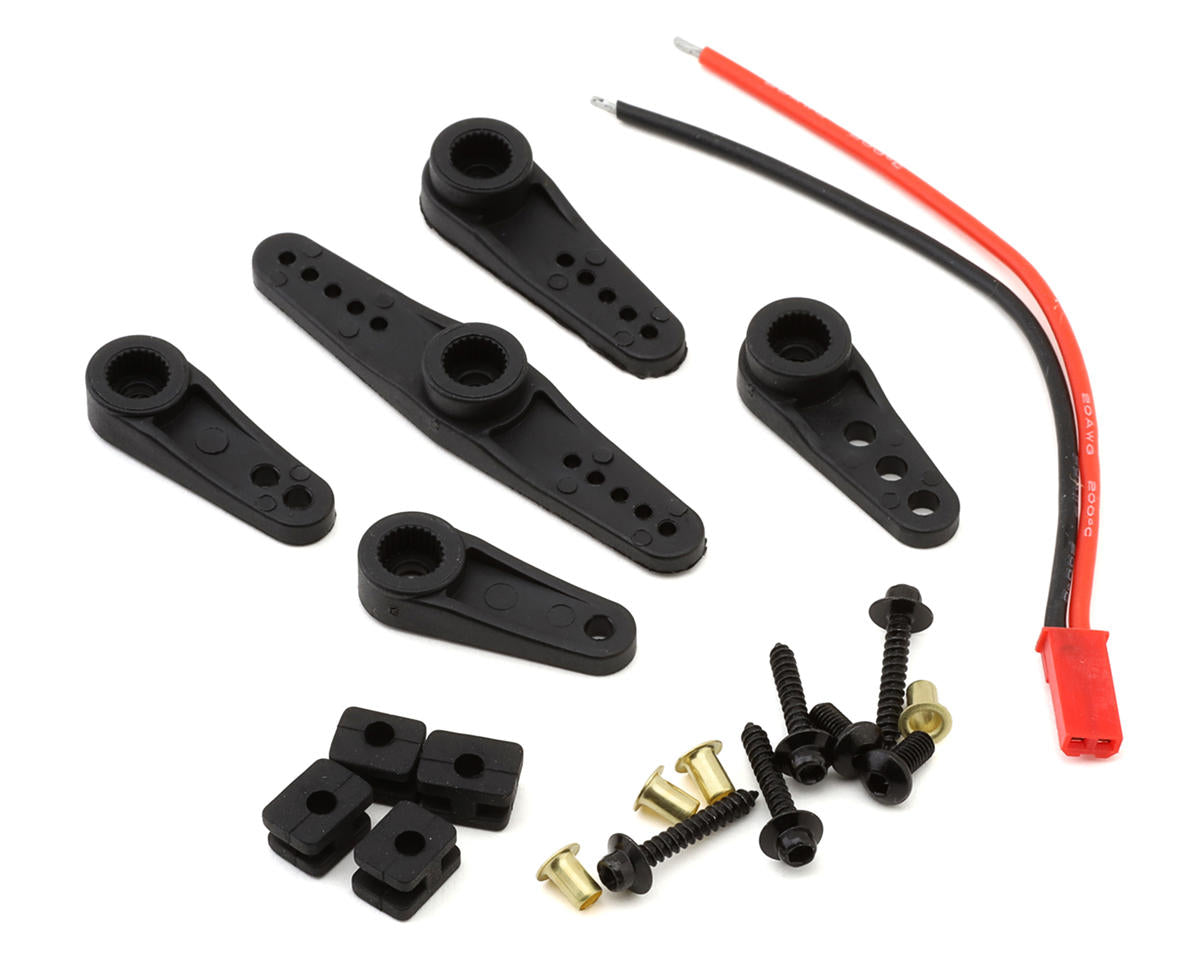

Includes:

• (1) S700 V2 High Torque servo
• (1) Pre-wired 2-Pin JST plug
• Multiple composite horns
• Mounting screws, bushing and rubber grommets
