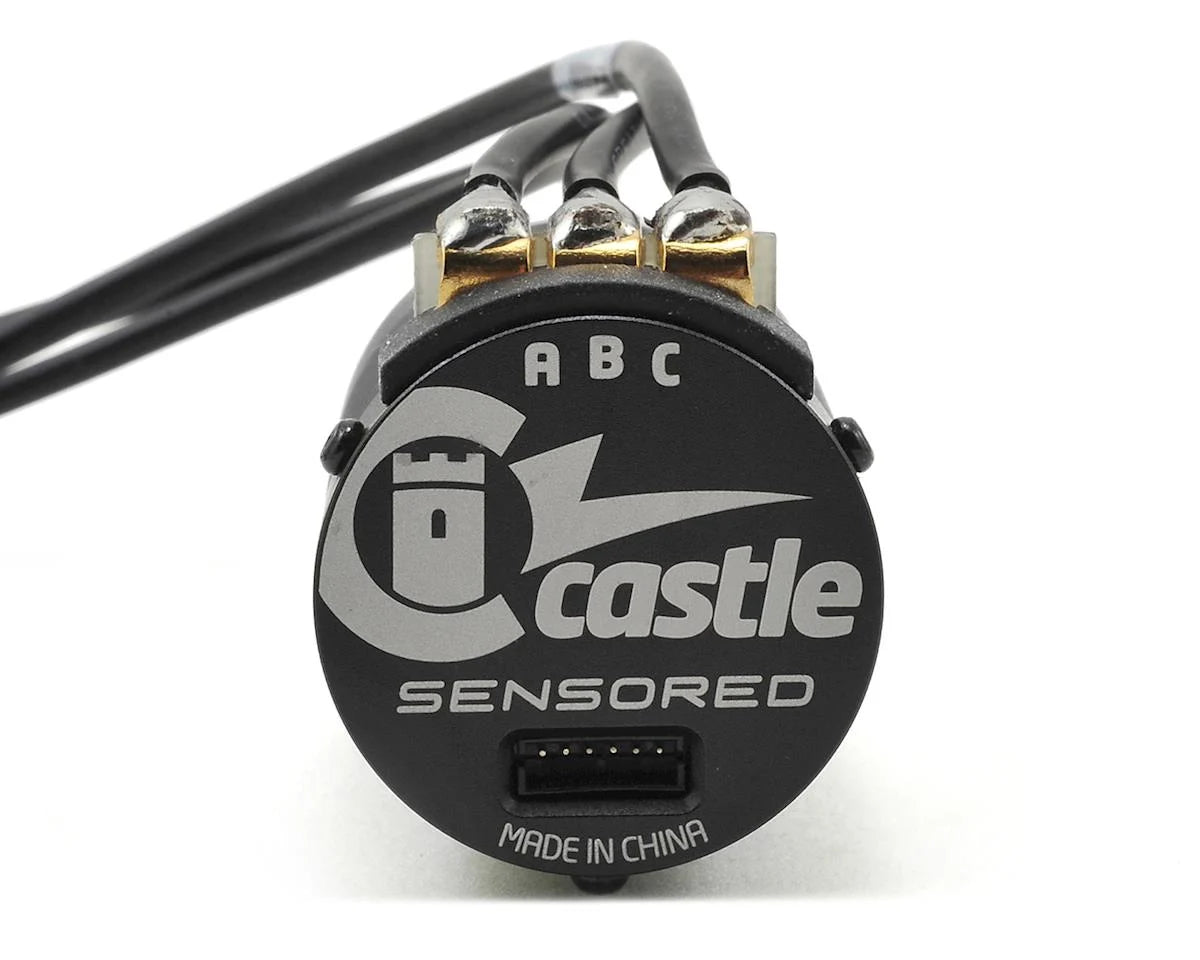

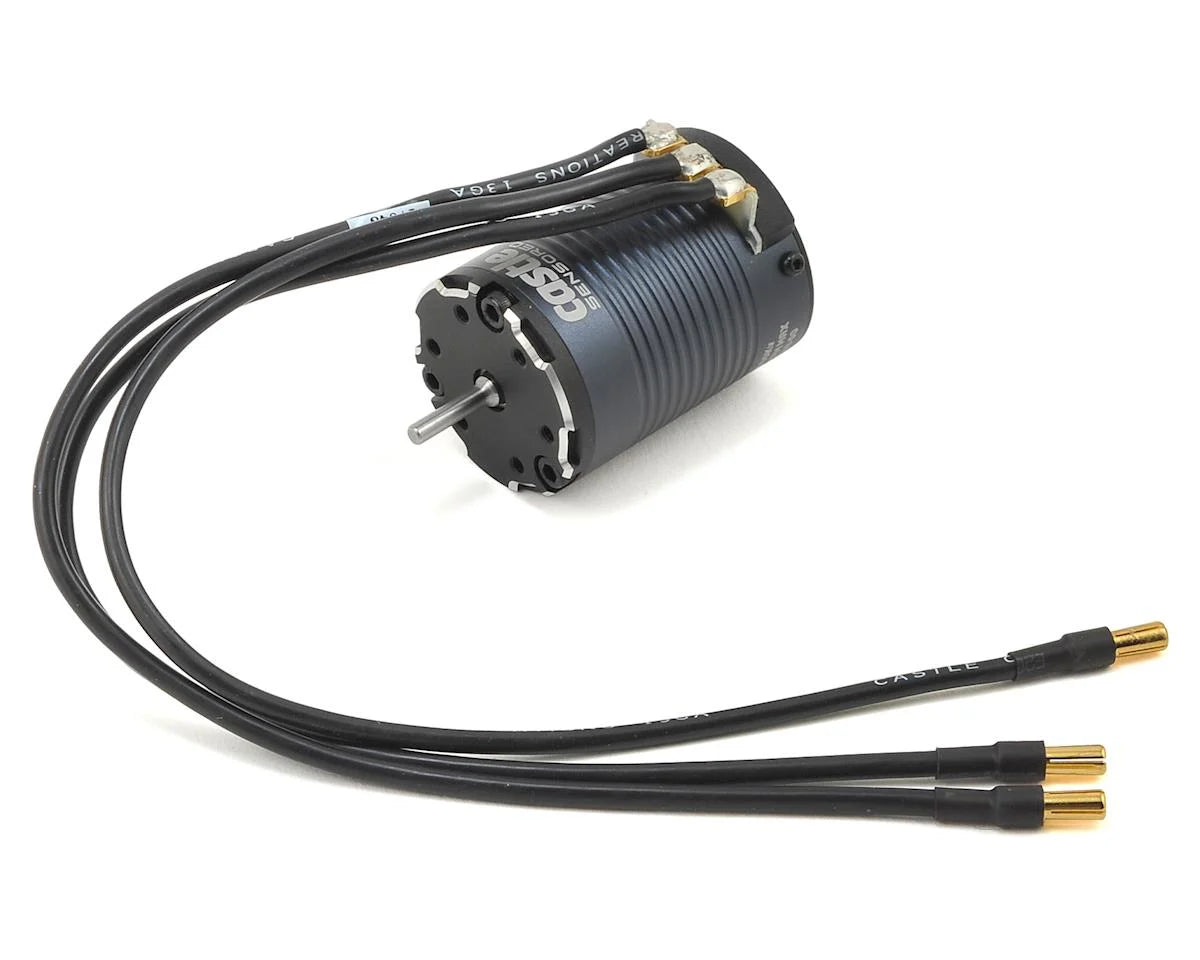

    Castle Creations "Slate" 1406 Sensored 4-Pole Brushless Crawler Motor (2850kV)

    Regular price $112.95 USD
    Regular price Sale price $112.95 USD
    Sale Sold out

    The Castle "Slate" 1406 Sensored 4-Pole Brushless Crawler Motors are ROCK READY! With super smooth startup and low RPM control, Castle has you covered if you are looking for the ultimate motor for the trails or Ultra 4 track days.


    Input Voltage Range: 2S-4S LiPo
    Kv: 2850
    Max. RPM: 100,000
    Can Length: 49.5mm
    Can Diameter: 36mm
    Weight (w/wires): 197 g / 6.9oz
    Shaft Size: Length: 15mm
    Shaft Diameter: 1/8" (3.17mm) (Optional 5mm rotor replacement available)
    Mounting Hole Specifications: M3 @ 25mm
    Cooling Fan: Optional - Coming Soon
    Connectors: 4mm male Castle Bullet Connectors
    Items Needed for Operation: Compatible Electronic Speed Control (ESC)
    Application Guidelines: Ideal for 1:10 scale rock crawlers, trail rigs, touring cars, stadium trucks and buggies on 2S-4S with appropriate gearing.
    Recommended ESC(s): Mamba Max Pro, Mamba X, Mamba Micro X
    Max. Recommended Vehicle Weight:
    Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs.

     Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to the document in the resources tab for running and maintaining motors in wet environments.
