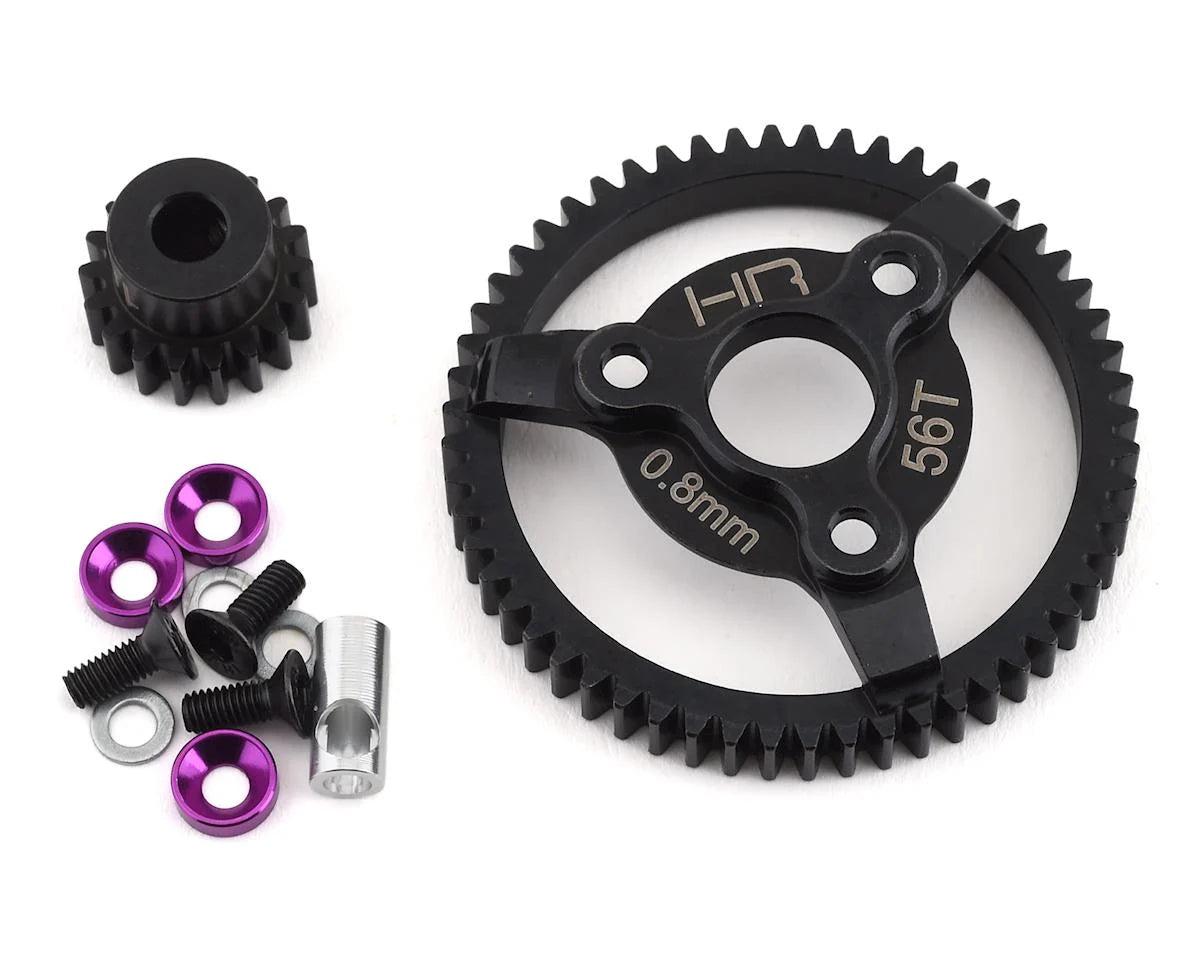

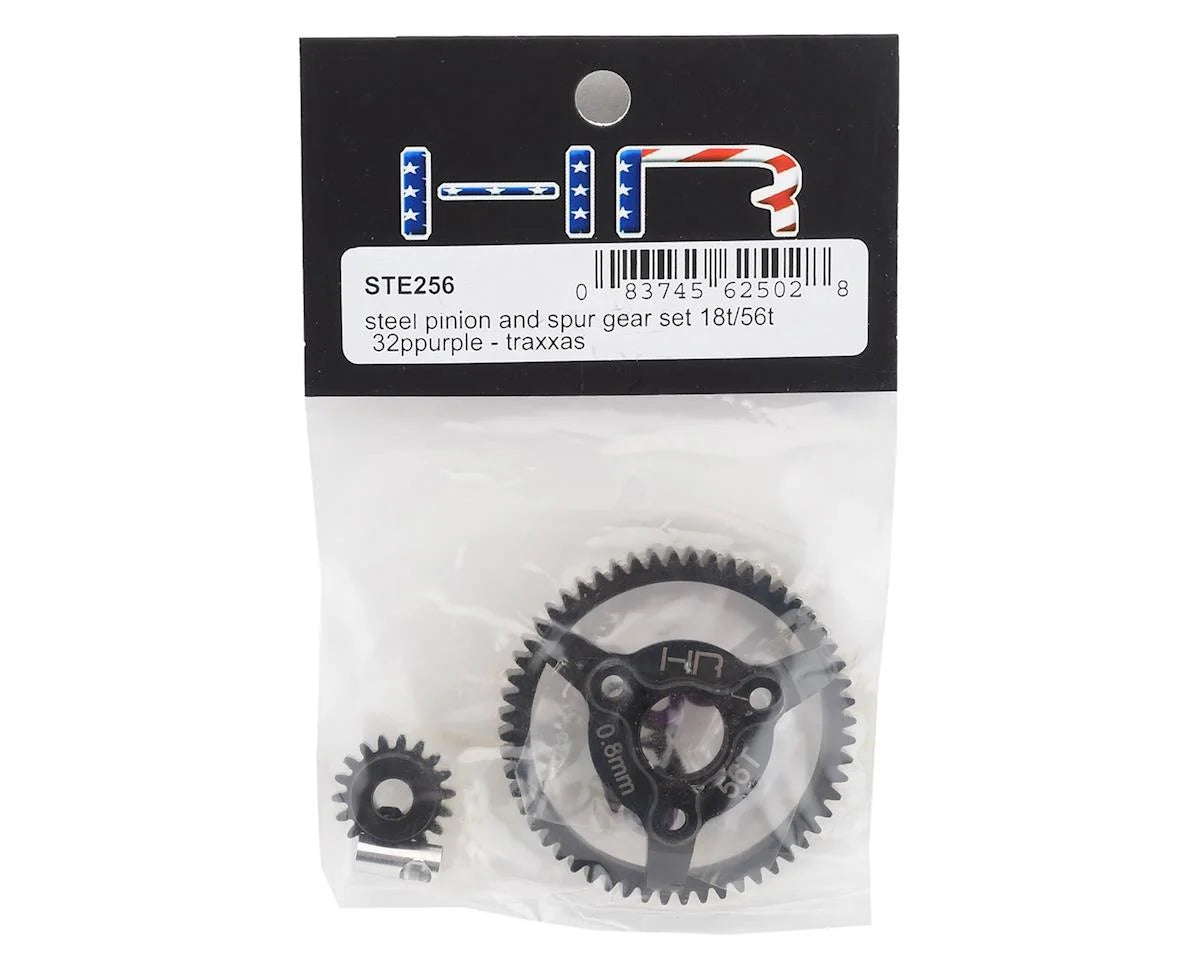

Hot Racing Traxxas 32P Steel Pinion & Spur Gear Set (Purple) (18T/56T) (Slash, Rustler, Stampede, Bandit)

This is an optional Hot Racing 32 Pitch Steel Pinion and Spur Gear Set for use with the following Traxxas 2WD models: Bandit, Rustler, Slash and Stampede.

Features:

• CNC machined and lightened hardened steel construction
• Replaces stock nylon spur gear
• Rugged 0.8 Module/32pitch teeth for total reliability on brushless power
• Aluminum pinion sleeve to allow for either 1/8 inch or 5mm motor shafts
• Black oxide coated gear for durability and corrosion resistance
• Purple anodized countersunk aluminum washers
• High strength hardware

Specifications:
Number of Teeth: 18T/56T
Gear Pitch: 32 pitch (0.8 module)
Mounting Holes: 3
Tooth Face width: ~5mm

Includes:

• (1) 18 tooth 32 pitch (0.8 Mod) pinion gear
• (1) 56 tooth 32 pitch (0.8 Mod) spur gear
• (3) mounting screws
• (3) purple anodized countersunk washers
• (1) pinion adapter sleeve
• (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur backing plate)

NOTES:

• Consider using Hot Racing motor lock plate HRATE18L06 for secure motor mounting
• Motor should no way exceed 180F. ESC should not exceed 160F. Excessive temperatures will shorten the life of the motor and ESC.
