    PROTEK RC

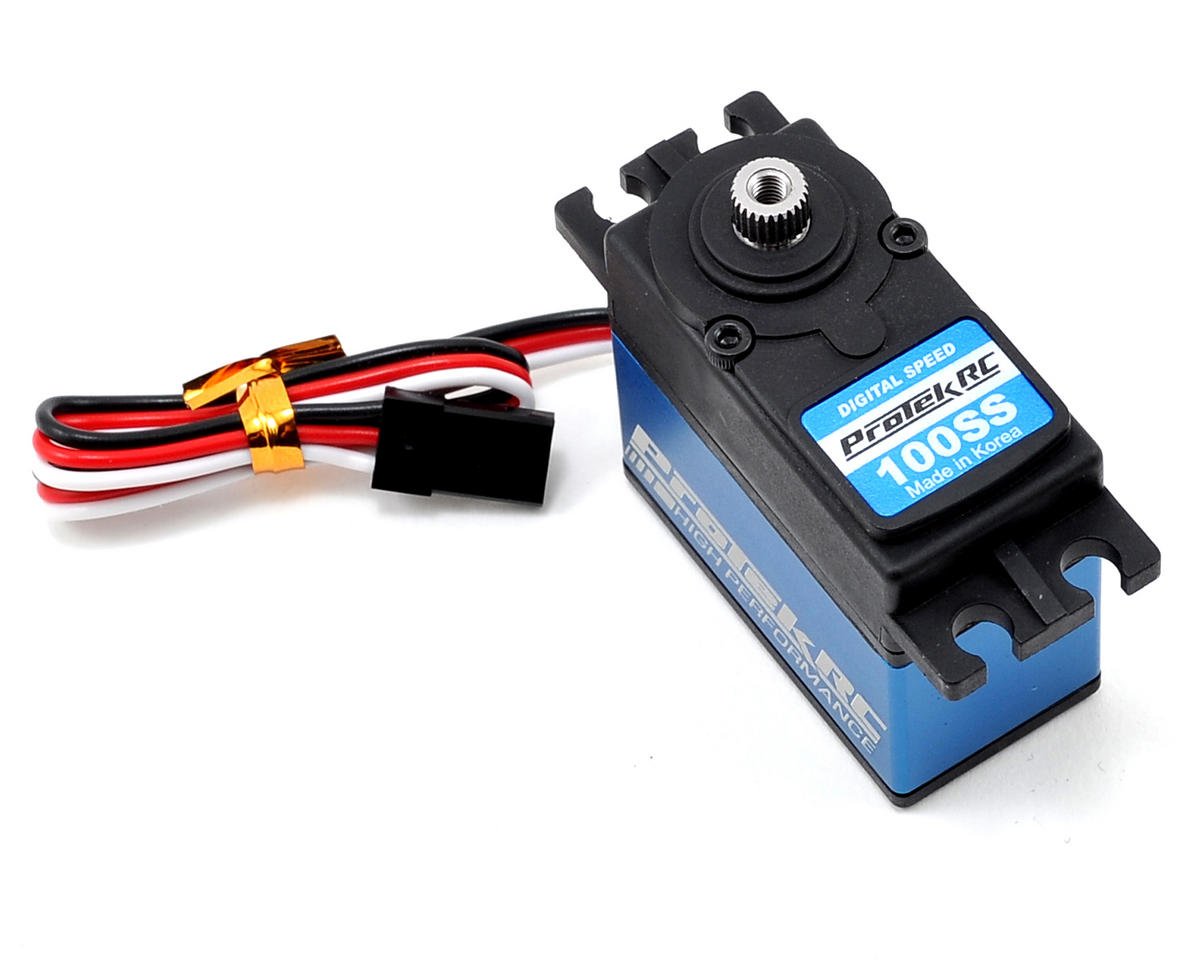

    ProTek RC 100SS Standard Digital "Super Speed" Metal Gear Servo

    Regular price $49.99 USD
    Regular price Sale price $49.99 USD
    Sale Sold out

    This is the ProTek R/C 100SS Digital Super Speed Metal Gear Servo. ProTek R/C Servos have been developed to provide enthusiasts with high quality servo's that will exceed expectations at every level. With features that meet or surpass what the competition can provide, ProTek R/C servos deliver performance and unmatched value, with industry leading customer support.

    The ProTek R/C 100SS Digital Super Speed servo delivers a swift 0.09 transit speed and 168 oz-in of torque. Other features include a full metal gear train that is supported by dual ball bearings, a 200mm long 22awg connector wire with gold plated connectors, a cored motor and an aluminum middle case that helps to dissipate heat and helps to increase efficiency.

    Stop wasting your money on budget servos that look good in the spec list, but fall short when its time to perform. Get ProTek and don't look back.

    Warning! This ProTek R/C servo requires that you use a m3x10mm screw to attach the servo horn to the output shaft. If you choose to use another screw, be sure to use a 10mm length screw. Use of a shorter screw can cause failure and will void your warranty.

    ProTek RC 100SS Servo For RC Cars, Trucks, Helis & Airplanes: A Main Hobbies' RC Talk



    Warranty Info Icon small

    Features:

    • Ideal for any 1/10 scale vehicle application
    • Aluminum middle case
    • 0.09 transit speed, and 168 oz-in of torque @ 6.0V

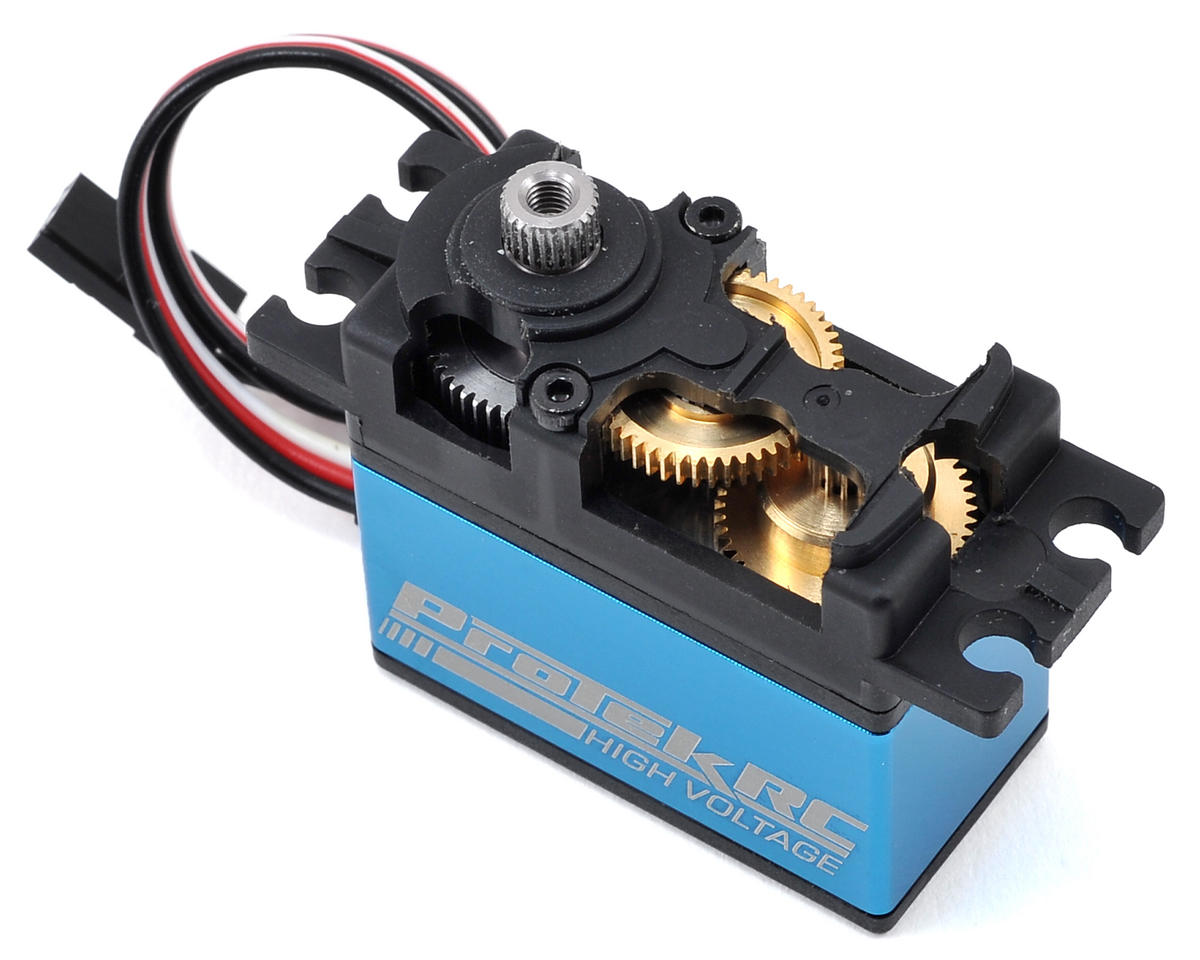

    • Full metal gears and dual ball bearings
    • 200mm long 22awg connector wire w/gold plated connectors
    • Cored Motor





    Servo Model
    100SS
    Recommended Application 1/10 scale surface
    Operating Voltage 4.8V - 6.0V
    Operating Temperature 14° to 140° F (-10 to +60° C)
    Operating Speed @ 4.8V 0.11/60° sec
    Operating Speed @ 6.0V
    0.09/60° sec
    Dynamic Torque @ 4.8V
    134 oz-in (9.6 kg-cm)
    Dynamic Torque @ 6.0V
    168 oz-in (12.1 kg-cm)
    Motor Type
    Cored DC Motor
    Output Shaft 25 Tooth
    Gears Metal
    Weight 54.9g
    Pulse/Frequency
    1520?s / 333hz
