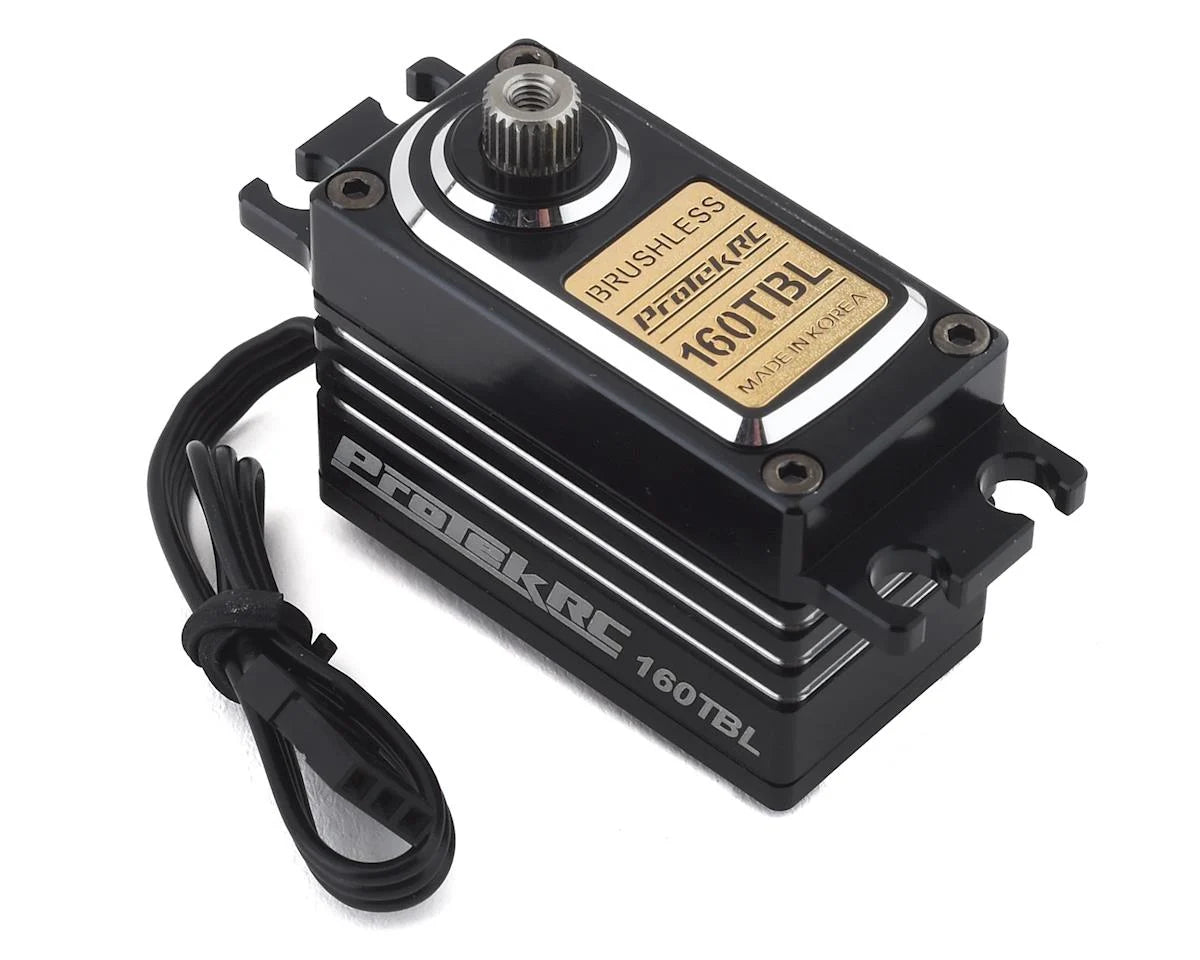

    ProTek RC 160TBL "Black Label" Low Profile High Torque Brushless Servo (High Voltage/Metal Case)

    Regular price $129.99 USD
    Regular price Sale price $129.99 USD
    Sale Sold out

    ProTek RC 160TBL Black Label Low Profile High Torque Brushless Servo.

    Brushless servo technology has improved by leaps and bounds. Finally, brushless servos can deliver holding power, speed and precision that can compete with a coreless servo. Combine that with the superior efficiency and lifespan of a brushless motor and you have a servo that hits all the marks, with the performance and quality required for a pro level build.

    A black anodized aluminum case with aluminum and gold accents give this servo a stealthy look that sets it apart from the rest. The aluminum upper case provides bomb proof durability and the heat sink center case offers efficient heat dissipation and helps to reduce weight. An aluminum, single arm clamping servo horn is included, as well as a full set of servo mounting washers for a rock solid and durable installation.


    Warranty Info Icon small

    NOTE: If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.


    • Used by Ryan Maifield to win the 2019 Roar 4wd Off-Road National Championships
    • Ideal for any 1/10 to 1/8 surface application that can benefit from a low profile configuration
    • Full aluminum black anodized case
    • High voltage circuitry
    • 0.08 transit speed, and 230 oz-in of torque @ 6.0V
    • 0.06 transit speed, and 290 oz-in of torque @ 7.4V

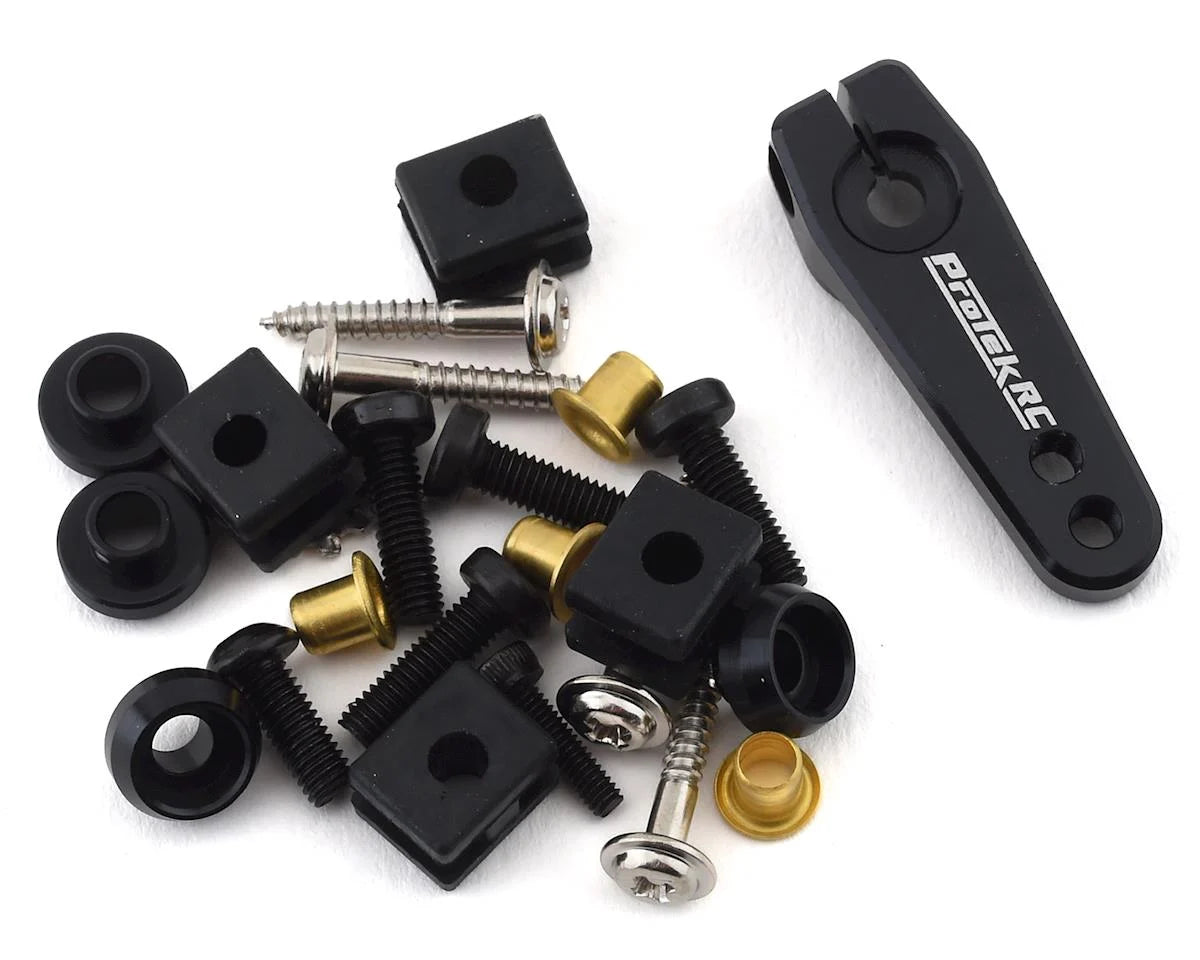

    • Includes aluminum single arm clamping servo horn and servo mounting washers for a rock solid installation
    • 140mm long servo lead
    • Full metal gears and dual ball bearings
    • Brushless motor



        Servo Model
        Recommended Application 1/10 to 1/8 Scale Surface
        Operating Voltage 4.8V - 7.4V
        Operating Temperature 14° to 140° F (-10 to +60° C)
        Operating Speed @ 6.0V 0.08/60° sec
        Operating Speed @ 7.4V
        0.06/60° sec
        Dynamic Torque @ 6.0V
        230 oz-in (16.5 kg-cm)
        Dynamic Torque @ 7.4V
        290 oz-in (20.9 kg-cm)
        Motor Type
        Output Shaft 25 Tooth
        Gears Metal
        Weight 55g
        1520?s / 333hz
        Dimensions 39.5x20x30.6mm
        Length (Bottom to Mount)
