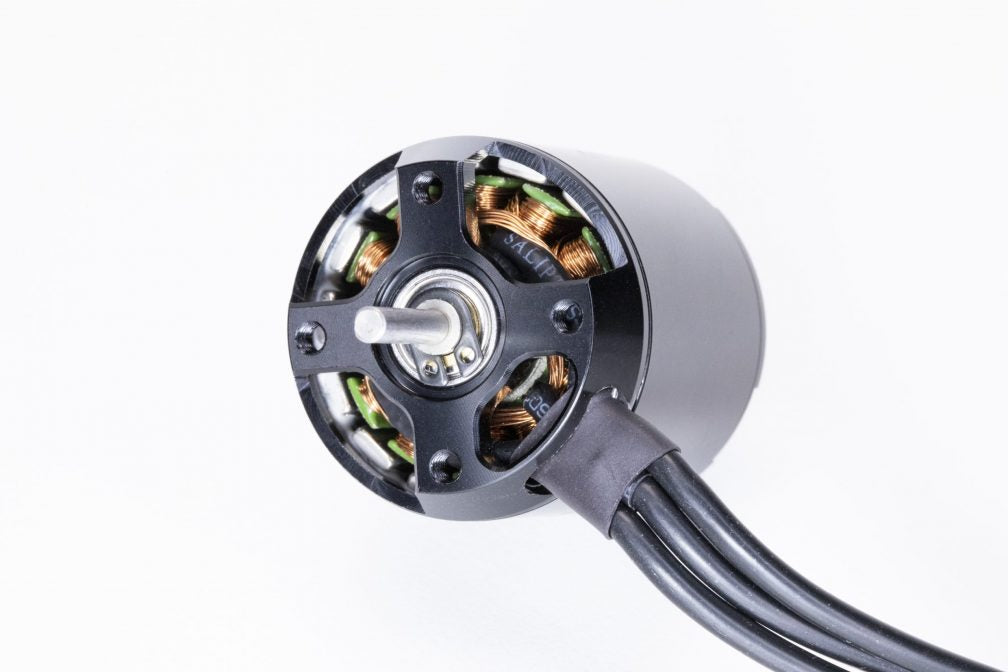

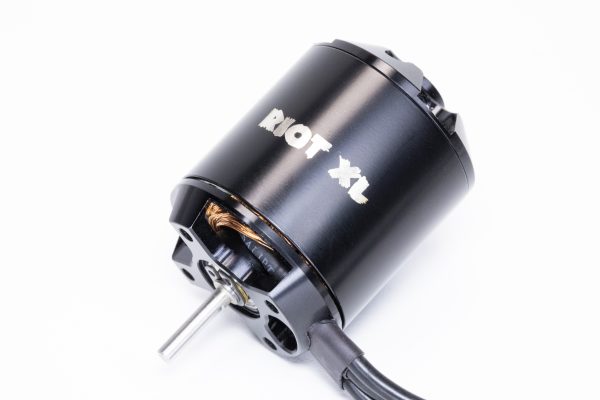

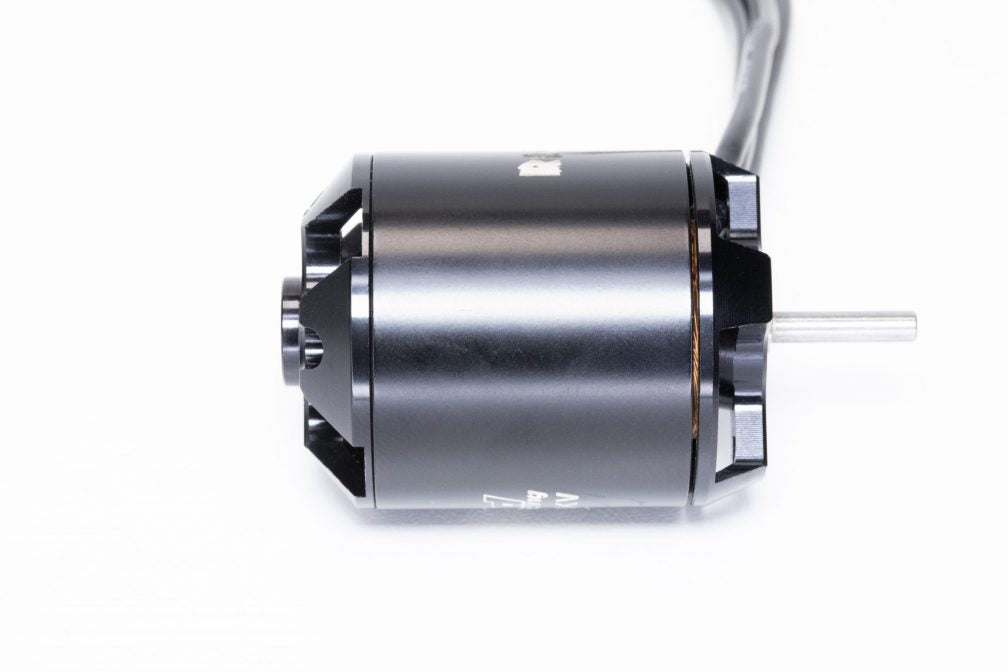

    Team Brood Riot XL 47mm Sensorless Outrunner Brushless Crawler Motor (1100Kv)

    $64.99 USD
    $64.99 USD
    Sale Sold out

    The Brood Riot XL 47mm Sensorless Outrunner Brushless Motor is a great choice for a variety of scale and performance crawler applications. Manufactured using Kawasaki Steel laminations and high grade N42 Neodymium magnets, this motor is lighter than an equivalent size outrunner, and is less prone to heat fade over the course of a run. Heat fade will decrease magnet strength, reducing torque and brake strength and create inconsistent startup.

    These motors are factory wired with super flexible, 4.5" long open ended 16AWG silicone wire allowing installation of the bullets that best suit the ESC. Additionally, the standard 1/8" diameter motor shafts have been precision ground with a "D Cut", allowing for simplified installation.

    NOTE: Outrunner type motors are water resistant, but require post run maintenance if exposed to water.

    Recommended Uses:

    • Scale and Trail rigs with single speed or two speed speed transmissions
    • Comp Trucks for Sorrca, Recon G6, etc
    • U4 Style Trucks
    • Rock Racer Trucks (Axial Bomber, Axial Wraith, etc)
    Features:
    • Lightweight Compact Brushless Outrunner
    • 0.2mm Kawasaki Steel Laminations
    • N42 Neodymium Magnets
    • 14 poles/12 slots for excellent torque and power, while providing smoother startup
    • Water-Resistant Design
    • CNC Machined 6061-T6 Aluminium Housing to increase cooling while reducing weight
    • Standard 540 M3 Mounting Pattern
    • Standard 1/8th Size Shaft with D Cut
    1 Year Limited Warranty
    Warranty covers manufacturing defects and does not cover water damage, rust, heat damage from overgearing, modifications, improper installation, misuse or abuse.



    Specifications:
    Kv: 1100Kv

    Type: 14 pole/12 slot Brushless Outrunner
    Magnets: N42 Neodymium Magnets
    Length: 47mm
    Diameter: 35mm
    Stator: 28x26mm
    Laminations: 0.2mm Kawasaki Steel
    Weight: 160 grams
    Input Voltage: 2s-4s Lipo
    Mounting Pattern: M3 25mm
    Shaft Diameter: 1/8" with flat (3.175mm)
    Wire: 4.5" 16AWG Silicone wire
